4x AA 1.5V (Mignon LR6) Li-Ion Battery XTAR 4100 mWh – No charger

Description

CAUTION: 1.5 V lithium-ion batteries can only be charged with XTAR L4, XTAR L8, XTAR LC4, XTAR LC8, XTAR MX4, XTAR VX4, VX2Pro or Soshine Chocolate 1.5 V (not included). Chargers for 1.5 V lithium-ion batteries from other manufacturers may not be compatible.

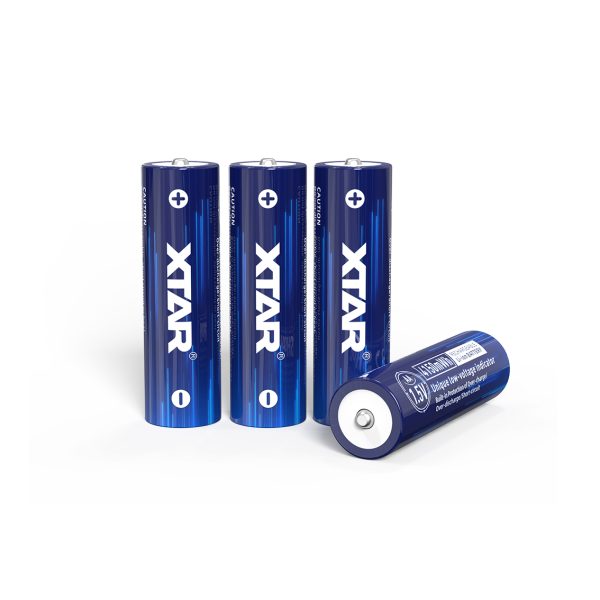

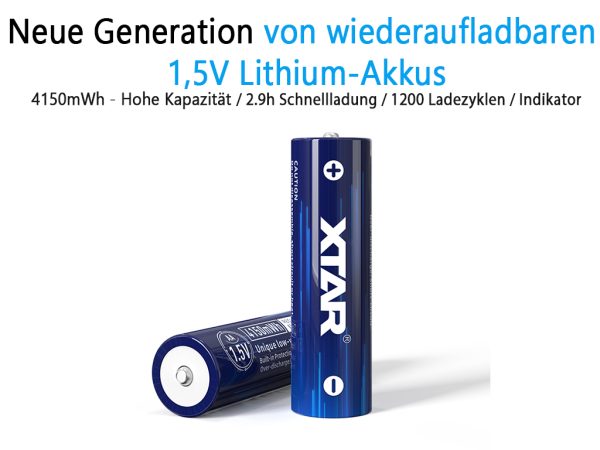

4x AA 1.5 V (Mignon) LR6 lithium-ion battery with indicator (low capacity indicator function)

Due to the stable and high output voltage, 1.5-volt lithium-ion batteries are compatible with all devices optimized for operation with disposable batteries, and where the low voltage of NiMH batteries (1.2 to 1.35 V) causes problems. Due to the high voltage, many devices have increased performance. For example, lamps and chain lights shine brighter, and the motors (in toys and household appliances) work faster than with NiMH batteries.

Recommended for all hunting cameras using 1.5V AA (Mignon LR6) batteries: Bolyguard MG984-36M, GardePro X50, GardePro X80….

Particularly suitable for: travel cameras, two-way radio stations, photographic equipment, flash units, thermostats, toys, modeling devices, security cameras and much more.

Important: Charging 1.5 V lithium-ion batteries is only possible with a charger specially designed for them. Charging with a conventional charger for NiMH/NiCd or lithium-ion batteries is not allowed. Charging in the base station of wireless/home phones is also not possible, as this would damage the batteries.

Suitable chargers: XTAR L4, XTAR L8, XTAR LC4, XTAR LC8 and Soshine Chocolate-1.5V.

Chargers for 1.5 V lithium-ion batteries from other manufacturers are not necessarily compatible.

Type: 1.5 V AA lithium-ion battery (USB-C)
Capacity: 2500mAh
Energy: 3950 mWh
Charging time: about 3.9 hours
Service life >1200 cycles
Raised positive pole (button on top)
LED Indicator Yes

Functionality: With a constant 1.5 volt output of this lithium-ion battery, which have a commonly used AAA/AA indicator, they revolutionize the mobile power supply for many standard applications. The indicator allows devices (with a low-power indicator function) to warn the user in time when the battery is almost empty.

Advantages: Constant high voltage (volts), electronic regulation, no memory effect, indicator.

The battery offers significant advantages due to low voltage shutdown. Most applications do not have their own low voltage shutdown, but do not damage the electronically regulated 1.5 V lithium-ion battery, unlike NiMH/NiCd batteries. Therefore, with a 1.5 V lithium battery, it is quite possible to charge 1200 charging cycles in real conditions.

Disadvantages: Electronic regulation allows only the discharge current specified in the specifications. The batteries can only be charged with a suitable charger.

Note: Electric motors, e.g. in cars, require a multiple of the prescribed continuous current when starting up.







Safety instructions:

Note that lithium cells should be used only by trained personnel.

Incorrect handling or short circuits may cause fire or explosion.

More features:

Lithium-ion batteries are thermally stable and have no memory effect.

They work on the basis of lithium and are distinguished by high energy density.

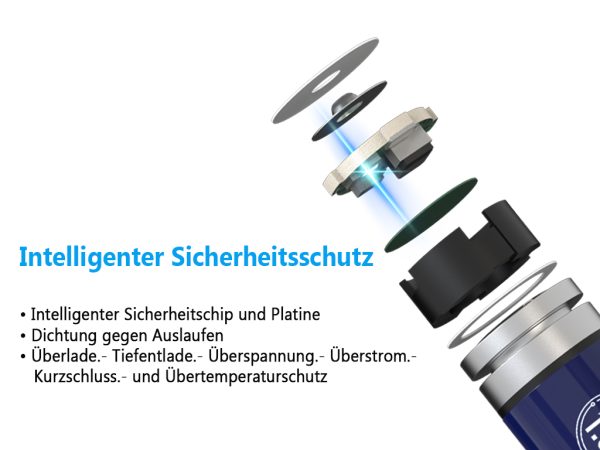

*Precise integrated voltage control circuit allows the user to notify the user in a timely manner when the power supply is insufficient.

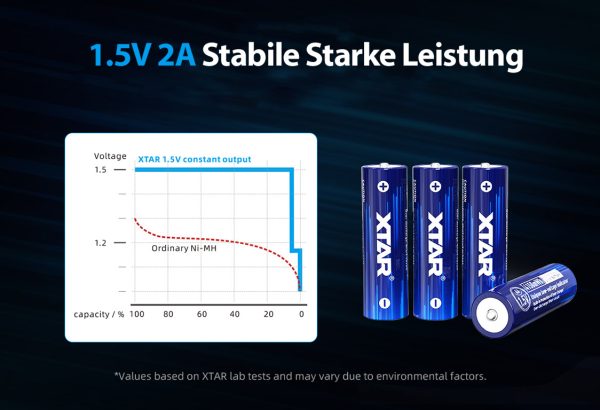

Function: 1.5 V lithium-ion battery works as usual with constant voltage (volts). Just before the battery runs out (approximately 2000 mAh), the electronics of the integrated circuit reduce the voltage to about 1.1 V. Devices with a low battery charge indicator thus remind the user to replace or charge the battery, as with non-chargeable batteries or 1.2 V rechargeable batteries. The usual 1.5 V lithium-ion batteries without an indicator are switched off at high voltage (volts) without the user being informed by a low battery charge.
