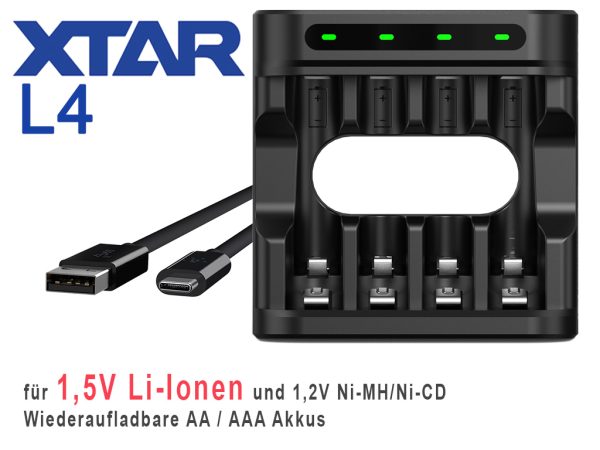

Xtar L4 Li-Ion Charger + 4x AA 1.5V (Mignon LR6) Li-Ion Battery XTAR 4100 mWh

Description

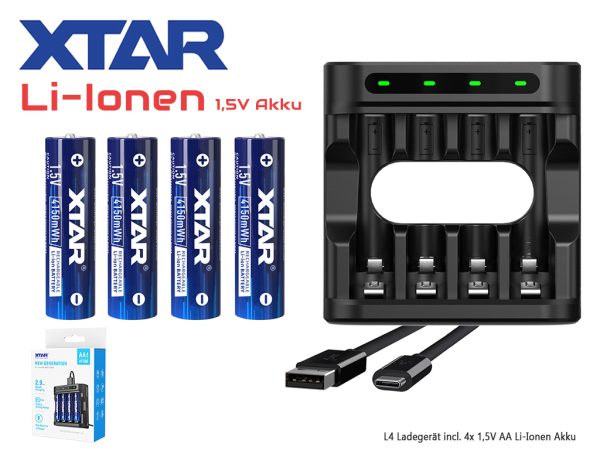

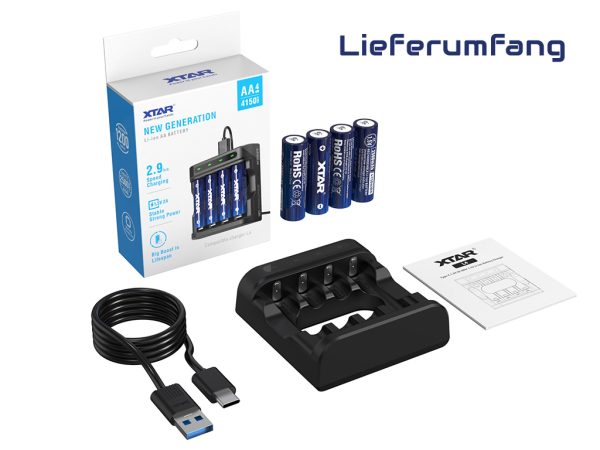

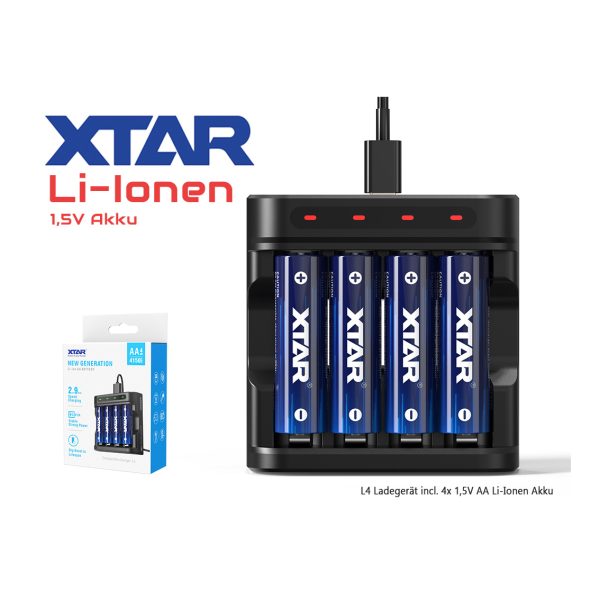

The kit consists of an XTAR L4 charger and four AA 1.5 V lithium-ion batteries with indicators.

These rechargeable 1.5 V AA batteries with indicators and regulated output voltage, based on lithium-ion technology, revolutionize mobile power supplies for many standard applications. Together with the XTAR L4 charger, designed specifically for this technology, we offer a set of products that makes this new technology affordable. The indicator alerts the user when the charge is low.

NOTE: 1.5 V lithium-ion batteries are compatible with XTAR L4, XTAR L8, XTAR LC4, XTAR LC8 and Soshine Chocolate 1.5 V chargers. (XTAR L4 is included)

Detailed product description of 1.5 V lithium-ion batteries with indicator.

Due to the stable and high output voltage, these 1.5-volt lithium-ion batteries are compatible with all devices optimized for use with disposable batteries, where the lower voltage of NiMH batteries (1.2 to 1.35 V) causes problems. The higher voltage causes the increased performance of many devices; for example, many lamps and chain lights shine brighter, and the motors (in toys and kitchen appliances) work faster than with NiMH batteries.

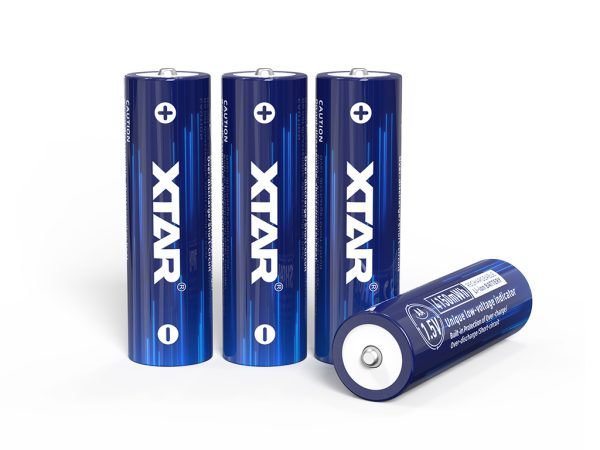

AA 1.5 V (Mignon) LR6 Li-ion battery with *indicator (low capacity indicator function)

Due to the stable and high output voltage, these 1.5-volt lithium-ion batteries are compatible with all devices optimized for use with disposable batteries, where a lower voltage of NiMH batteries (1.2 to 1.35 V) causes problems. Due to the high voltage, many devices have increased performance. For example, lamps and chain lights shine brighter, and the engines (in toys and household appliances) work faster than with NiMH batteries.

Recommended for all hunting cameras using 1.5V AA (Mignon LR6) batteries: Bolyguard MG984-36M, GardePro X50, GardePro X80….

Particularly suitable for: travel cameras, two-way radio stations, photographic equipment, flash units, thermostats, toys, modeling, security cameras and much more.

Important: Charging 1.5 volt lithium-ion batteries is only possible with a charger specially designed for them. Charging with a conventional charger for NiMH/NiCd or Li-ion battery is not allowed. Charging in the base station of wireless/home phones is also not possible, as this would damage the batteries.

Suitable chargers: XTAR L4, XTAR L8, XTAR LC4, XTAR LC8 and Soshine Chocolate-1.5V.

Chargers for 1.5 V Li-ion batteries from other manufacturers are not necessarily compatible.

Capacity in mWh: 4150 mWh
Capacity in mAh: approx. 2500 mAh
Rated voltage: 1.5 V
Low power consumption, number of functions: 1.1 V
Maximum discharge current 2A (2000mA)
Charging current 0.xx – 0.45A
Raised positive pole (button above)
Cycle life achieved: about 1200 cycles
Diameter 14,30 mm ± 0,3 mm
Height 50,30 mm ± 0,5 mm
Weight 19 g ± 1 g







Detailed product description for the LC4 charger.

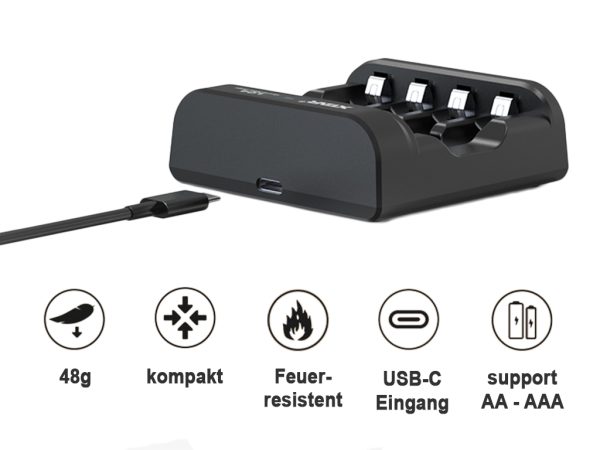

The LC4 is a 4-slot charger for 1.5 V lithium-ion batteries with a regulated output voltage and indicator, in AA (Mignon) and AAA (Micro) sizes.

Xtar LC4 with 4 charging slots for 1.5 V lithium-ion batteries AA/AAA with indicators.

Power supply is provided via USB-C input; the power supply is not included for environmental reasons and for cost saving. You can connect it to any 5V USB port. 5V USB ports are available in most households, in addition to smartphones, USB chargers, PCs, laptops, laptops and car USB adapters.

The Xtar LC4 is a convenient and affordable charger for 1.5V AA/AAA batteries with indicators.

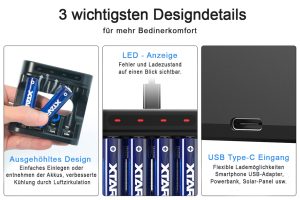

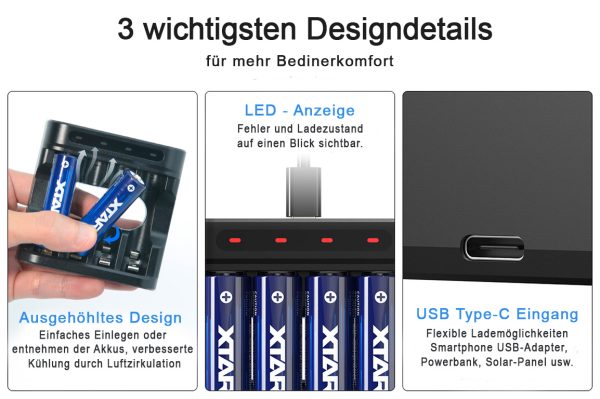

The unique hollow design, which significantly improves heat dissipation and facilitates the removal of batteries, is gentle on batteries and provides excellent performance.





Safety instructions:

Note that lithium cells should be used only by trained personnel.

Incorrect handling or short circuits may cause fire or explosion.

More features:

Lithium-ion batteries are thermally stable and have no memory effect.

They work on the basis of lithium and are distinguished by high energy density.

*Precise integrated voltage control circuit allows the user to notify the user in a timely manner when the power supply is insufficient.

Function: 1.5 V lithium-ion battery works as usual with constant voltage (volts). Just before the battery runs out (approximately 2000 mAh), the electronics of the integrated circuit reduce the voltage to about 1.1 V. Devices with a low battery charge indicator thus remind the user to replace or charge the battery, as with non-chargeable batteries or 1.2 V rechargeable batteries. The usual 1.5 V lithium-ion batteries without an indicator are switched off at high voltage (volts) without the user being informed by a low battery charge.
