Description

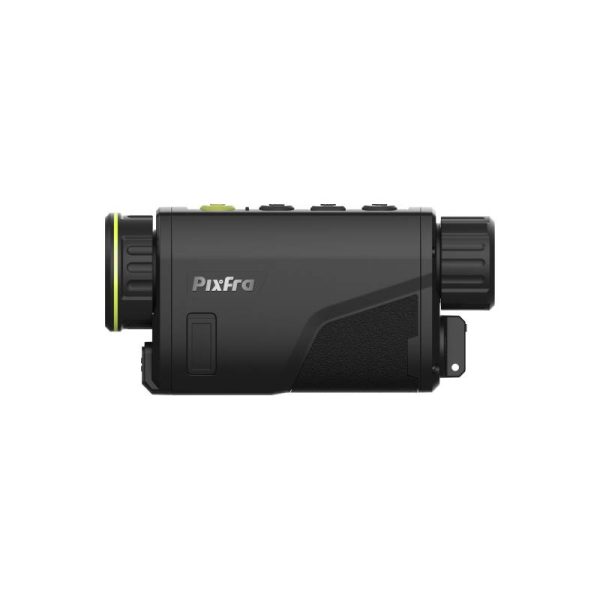

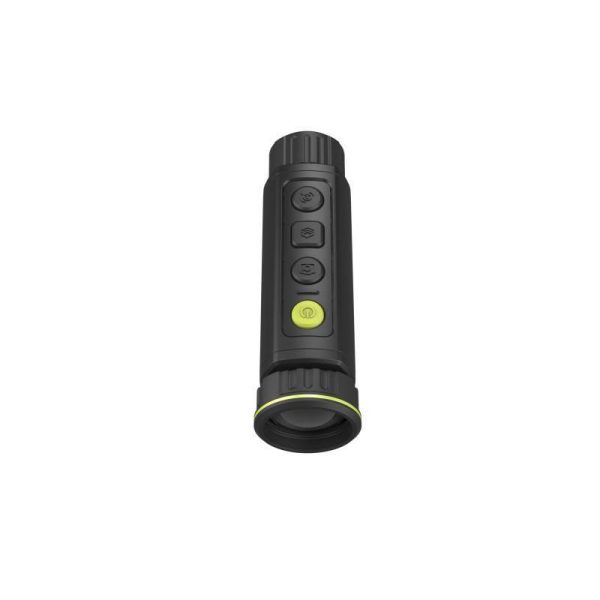

Thermal monocular PIXFRA ARC PRO series A625P



Impeccable energy efficiency

Discover the new ARC PRO battery cover innovation that complements the ultra-low power consumption for 15-hour operation with two 18650 batteries. A quick change and a secure fit ensure a smooth hunt.





Light alloy elegance

The design of the ARC PRO made of magnesium alloy provides a superior look and feel, with an additional advantage of being lightweight and robust.





Comfortable design improvements

Experience the upgraded ergonomics of the ARC PRO, which includes a sculpted eyepiece for perfect eye contact and a sophisticated grip for superior control.





Intuitive connection APP

Your ARC PRO and our Pixfra Outdoor app are the perfect team. Get instant views and easy control over the key features of your device directly from your phone. Simple, smart and always at your fingertips.







With a sensitive thermal sensor 640×512, 12μm, <20mK NETD and a powerful 25mm f1.0 lens, the new Pixfra Arc A625P allows heat to be detected at a distance of up to 1300 m, with even the slightest long-distance heat signature. The image is displayed on a colour 1440×1080 OLED display that delivers a stunning thermal image.

The Arc A625P includes a number of features to enhance your viewing experience, such as a built-in video recorder, multiple color palettes, and even the ability to share your screen via the Pixfra app.





---

Powerful thermal optics

The Pixfra Arc A625P offers professional thermal imaging technology in a compact, lightweight and affordable device.

With a high-sensitivity thermal sensor 640×512, 12μm, <20mK NETD and a powerful 25mm f1.0 lens, this thermovision monocular allows detection at a distance of up to 1300 m and provides a clear thermal image on a colour 1440×1080 OLED display.



---

Prolonged observation

The Arc A625P has two replaceable and refilled batteries with a capacity of 7 hours of operation, which allows for a total use of up to 14 hours without any worries about recharging.



---

Share the view

The Arc A625P is designed for group observation, as it allows you to connect to four smart devices via the free Pixfra app. Through the app, the device can share a screen with four people up to 20 m away from the device, allowing all members of the group to observe without sharing the device viewer.

The app is available for free for Android and iOS.



---

Comfort and portability

The Arc A625P is designed with comfort and durability in mind. It has an ergonomically designed body and easily arranged buttons for comfortable use.

With a weight of 360 g, it is extremely light, which reduces fatigue during use. When not in use, it can be easily stored in a backpack or pocket.

The robust magnesium alloy housing provides impact resistance, and the IP67 certificate protects the device from dust and water, which allows it to be used in all weather conditions, even at extreme temperatures from –30 °C to +50 °C.



---

Technical specifications

Thermal sensor: 640×512, 12μm, <20mK NETD
Detector type: Vanadium oxide non-tempered detector with focal plane
Spectral range: 8μm～14μm
Image speed: 50 Hz
Lens: 25 mm f1.0
Detective distance: 1300 m
High resolution contrast and fast image response are the reasons why it provides a clear and smooth image for observation in motion or in cold conditions
Made from magnesium
It fits perfectly in the hand
Pro-Grade Technology
PIPS 2.0 algorithm: reduces ambient noise, increases contrast and clarity of detail
Image calibration using artificial intelligence (AI).
Laser rangefinder with measurement up to 1000 meters
Color palettes: 6 (white hot, black hot, iron red, alarm, amber, emerald)
Minimum focusing distance: 2 m
Digital zoom: 1x, 2x, 4x, 8x
Display dimensions: 0.41 inches, OLED
Display resolution: 1440 × 1080
Diopter: -4D ~ +5D
Correction of uniformity: Automatic; Manual
Storage: Built-in EMMC (32 GB)
Video recording: Yes (up to 2 hours per recording)
Sound recording: Yes
Tracking of heat points: Yes
Wi-Fi: Yes
Power Supply: 5 V, Type-C
Battery type: 1 rechargeable lithium battery (2 batteries included in the price)
Battery capacity: 3200 mAh
Battery life: Up to 7.5 h
Operating temperature: –30 °C to +60 °C
Storage temperature: –30 °C to +70 °C
Protection: IP67
Product dimensions: 151,8 mm × 42,3 mm × 74,3 mm (D × W × V)
Packaging dimensions: 245 mm × 150 mm × 144 mm (L × W × V)
Net weight: ≤360 g (without battery)



---

Contents of the package

Pixfra Arc A625P
2 x 18650 Li-ion batteries
USB-C charger with two slots
Carrying bag
Instructions for use
Lens cleaning cloth



---

Warranty

The device has a 3-year warranty from the manufacturer Pixfra. For more information, see the user manual that comes with the device.

In stock with supplier.
